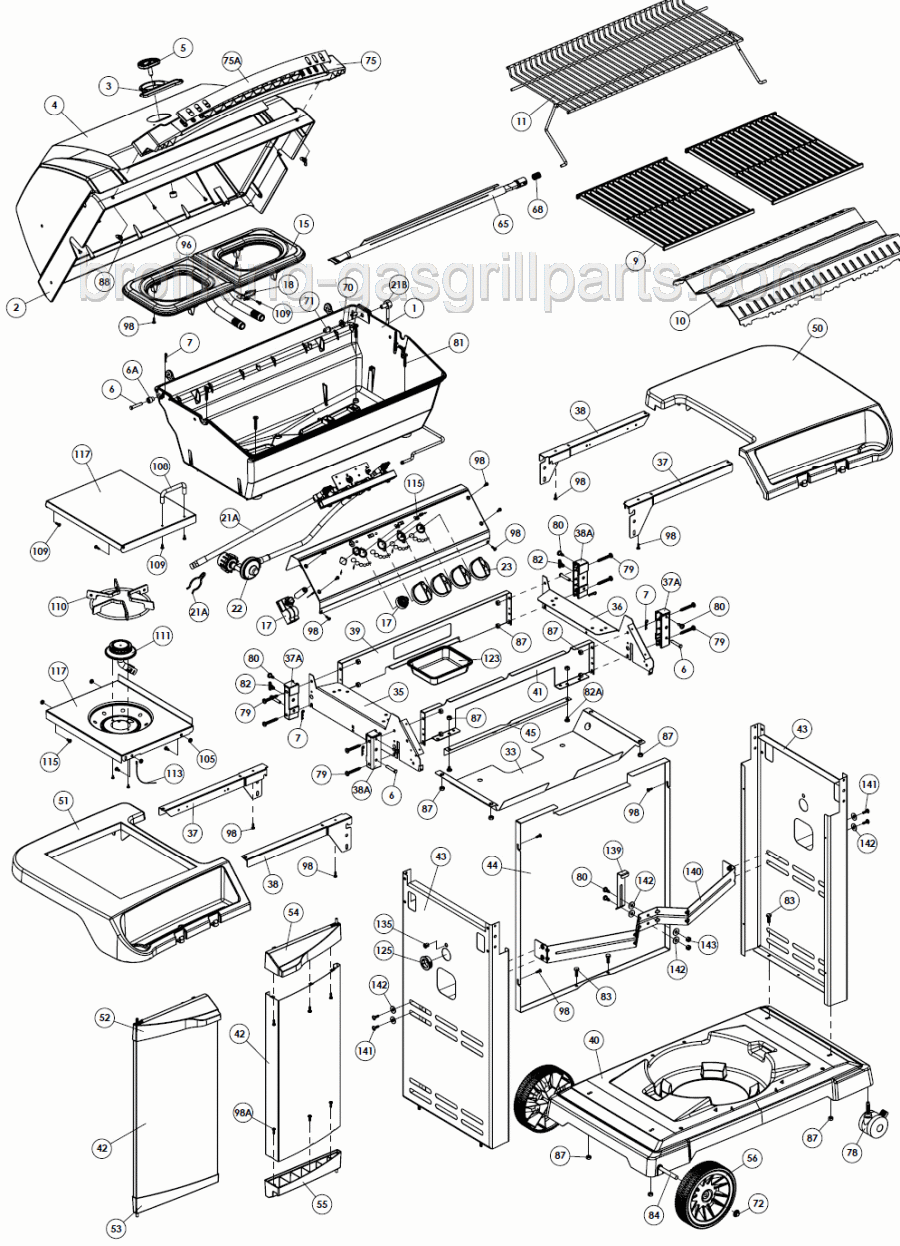

Click image or part# below
for complete description and photos. |
|
| 3 |
 |
10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC - more info and photos... |
$13.12 |
|
|
| 5 |
 |
10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long. - more info and photos... |
$17.77 |
|
|
| 7 |
 |
S21233 Hinge pin clip. - more info and photos... |
$1.08 |
|
|
| 9 |
 |
38170121 Genuine OEM cast iron cooking grid, single panel.*Sold individually.*Number required varies.*Porcelain treated ma - more info and photos... |
$49.66 |
|
|
| 10 |
 |
10222-T425 Genuine OEM stainless steel Flav-R-Wave heat plate. Also replaces porcelain-steel part# 10222-T424, which has been dis - more info and photos... |
$48.96 |
|
|
| 15 |
 |
S10017 Genuine OEM stainless steel burner and venturi assembly. Includes burner-mounted igniter electrode and wire part# S15500 - more info and photos... |
$76.34 |
|
|
| 17 |
 |
10342-245 Genuine OEM electronic push-button 2-spade igniter.*Uses AAA battery (not included)*.Requires 3/4" mounting hole*Also r - more info and photos... |
$16.47 |
|
|
| 18 |
 |
S15500 Genuine OEM collector box and electrode assembly. Includes *burner mounted collector box (clip on)* ceramic electrode a - more info and photos... |
$5.45 |
|
|
| 21 |
|
10442-T53 Gas control assembly for natuarl gas models. NG-3V. Includes valves, no hose. - more info...
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. |
$64.42 |
|
|
| 21A |
|
S13467-132 NG side burner hose no longer available separately. - more info... |
$24.45 |
|
|
| 21A |
 |
Y-11230 Cotter pin - more info and photos... |
$1.08 |
|
|
| 22 |
 |
10111-K45 Genuine OEM NG gas hose. - more info and photos... |
$88.75 |
|
|
| 33 |
 |
10184-R80 Radiation shield. - more info and photos... |
$19.69 |
|
|
| 37 |
 |
10184-E461 SHELF SUPPORT LH BLK - more info and photos... |
$7.02 |
|
|
| 51 |
|
10711-E563 SHELF SB EZ-BILT W/O BRACKET - more info... |
$36.01 |
|
|
| 52 |
 |
10184-E78A Genuine OEM End Cap, door. Left hand side, with magnet. - more info and photos... |
$6.33 |
|
|
| 53 |
 |
10184-E76 END CAP DOOR BOTTOM LEFT A - more info and photos... |
$5.73 |
|
|
| 54 |
 |
10184-E79A Genuine OEM End Cap, door. RIght hand side, with magnet. - more info and photos... |
$6.33 |
|
|
| 55 |
 |
10184-E77 END CAP DOOR BOTTOM RIGHT A - more info and photos... |
$5.73 |
|
|
| 56 |
 |
10892-7G Genuine OEM 7" cart wheel with 3/8" axel hole. Mini hub cap is # 00400251, sold separately. - more info and photos... |
$13.19 |
|
|
| 72 |
 |
S21420 Push nut 3/8 - more info and photos... |
$2.23 |
|
|
| 78 |
 |
10892-15 Genuine OEM caster wheel; approximately 2 3/8" diameter. - more info and photos... |
$7.23 |
|
|
| 104 |
|
Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 - more info... |
$0.70 |
|
|
| 108 |
 |
PB20-60 S/B LID HANDLE WAGON ENCLOSER* - more info and photos... |
$1.95 |
|
|
| 111 |
 |
10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow). - more info and photos... |
$14.97 |
|
|
| 113 |
 |
10342-T14 Genuine OEM 21" wire for side burner or other applications. One female spade connector, one female round connector. - more info and photos... |
$4.32 |
|
|
| 123 |
 |
S15115 Genuine OEM disposable grease pans. Package of 10. Each measures 4.75"x6"x1". - more info and photos... |
$15.15 |
|
|
|
 |
10225-E404 Genuine OEM stainless steel cooking grid. SOLD INDIVIDUALLY. Number required varies, check your grill to be sure. - more info and photos... |
$79.92 |
|
|
|
 |
10225-T436 Genuine OEM reversible heavy cast iron cooking grid SOLD INDIVIDUALLY.*Sold individually*Number required varies, check y - more info and photos... |
$42.83 |
|
