Grill model: 955-48
Genuine Broil King factory replacement parts

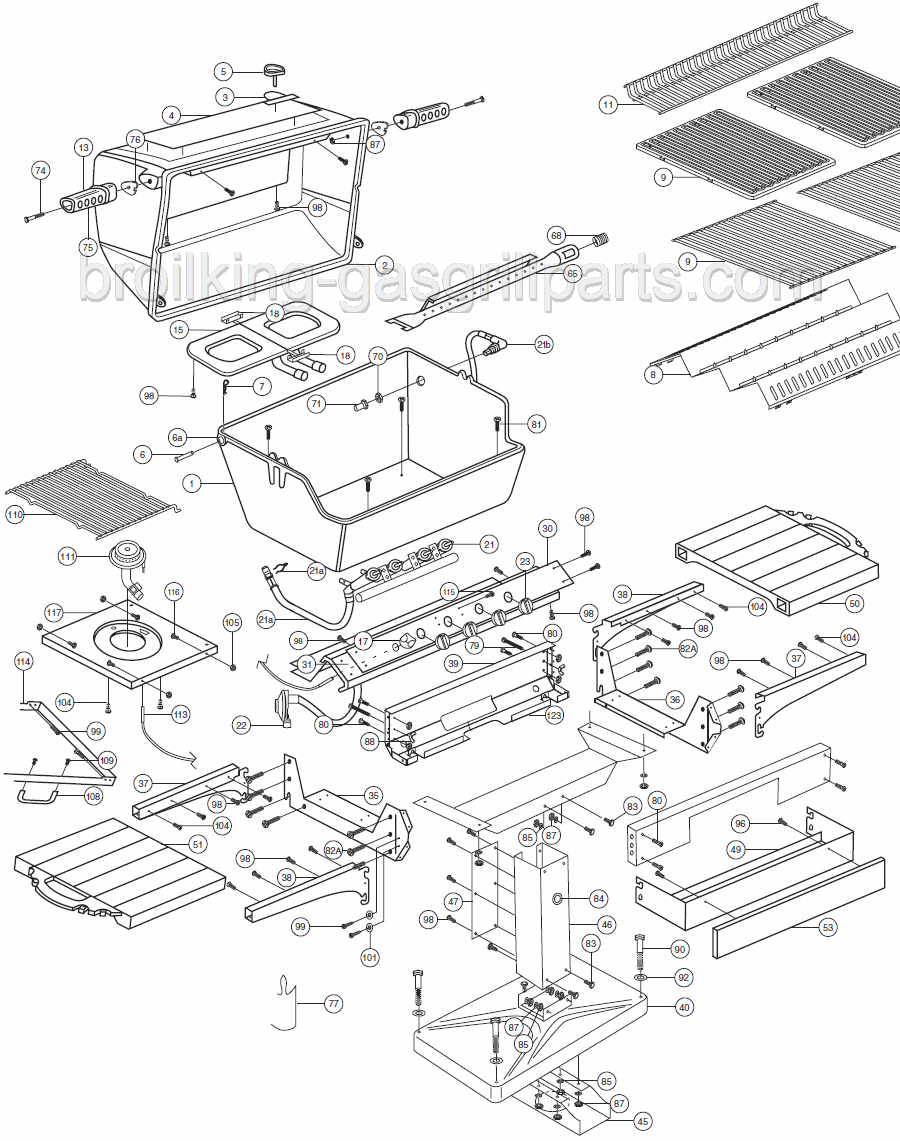

Click image or part# below for complete description and photos.
3		10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC - more info and photos...	$13.12		Qty
5		10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long. - more info and photos...	$17.77		Qty
7		S21233 Hinge pin clip. - more info and photos...	$1.08		Qty
8		10222-T425 Genuine OEM stainless steel Flav-R-Wave heat plate. Also replaces porcelain-steel part# 10222-T424, which has been dis - more info and photos...	$48.96		Qty
9		10225-T429 Genuine OEM cast iron cooking grid. Porcelain treated, flat matte finish. SOLD INDIVIDUALLY. Also replaces part# 1022 - more info and photos...	$60.83		Qty
15		10390-T501 Genuine OEM stainless steel Infinity burner assembly. This burner assembly does not include the electrodes. Includes:*O - more info and photos...	$74.39		Qty
17		10342-22 Genuine OEM push button igniter. For two-wire grills with second wire for side burner. Wires not included. - more info and photos...	$8.19		Qty
18		10342-T301 Genuine OEM collector box and electrode assembly. Includes:*burner mounted box with mounting screw* ceramic electrode a - more info and photos...	$10.96		Qty
21		10442-K53 CONTROL ASSEMBLY 60M 3V NG 950 -- 40/80/262ON - more info... SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer.	$73.16		Qty
21A		S13467-132 NG side burner hose no longer available separately. - more info...	$24.45		Qty
21A		Y-11230 Cotter pin - more info and photos...	$1.08		Qty
23		10472-K36 Genuine OEM control knob. *Off position D-Value: 6 o'clock*Knob diameter: 1 5/8"*Socket diameter: 5/16"*Knob shaft: 1/2" - more info and photos...	$5.48		Qty
47		10958-K541 Genuine OEM flat black post cover. 5/16in side-to-side, 18 7/8in tall. - more info and photos...	$9.93		Qty
57		10156-K55 HEAT SHIELD 950 2600 - more info...	$6.59		Qty
74		Y-6616 Bolt - more info and photos...	$1.08		Qty
76		10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material. - more info and photos...	$1.95		Qty
77		S15111 Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket - more info and photos...	$3.11		Qty
104		Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 - more info...	$0.70		Qty
108		PB20-60 S/B LID HANDLE WAGON ENCLOSER* - more info and photos...	$1.95		Qty
110		10225-T10 Genuine OEM side burner grid - more info and photos...	$25.65		Qty
111		10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow). - more info and photos...	$14.97		Qty
113		10342-T12 Genuine OEM 21" wire for side burner or other applications. Both ends are female spade connector. - more info and photos...	$4.21		Qty
114		10393-K40 Genuine OEM Cover, side burner. - more info and photos...	$18.74		Qty
		10225-T424 Stainless Steel cooking grid. 50% T45 - more info...	$88.27		Qty
