Grill model: 946-28
Genuine Broil King factory replacement parts

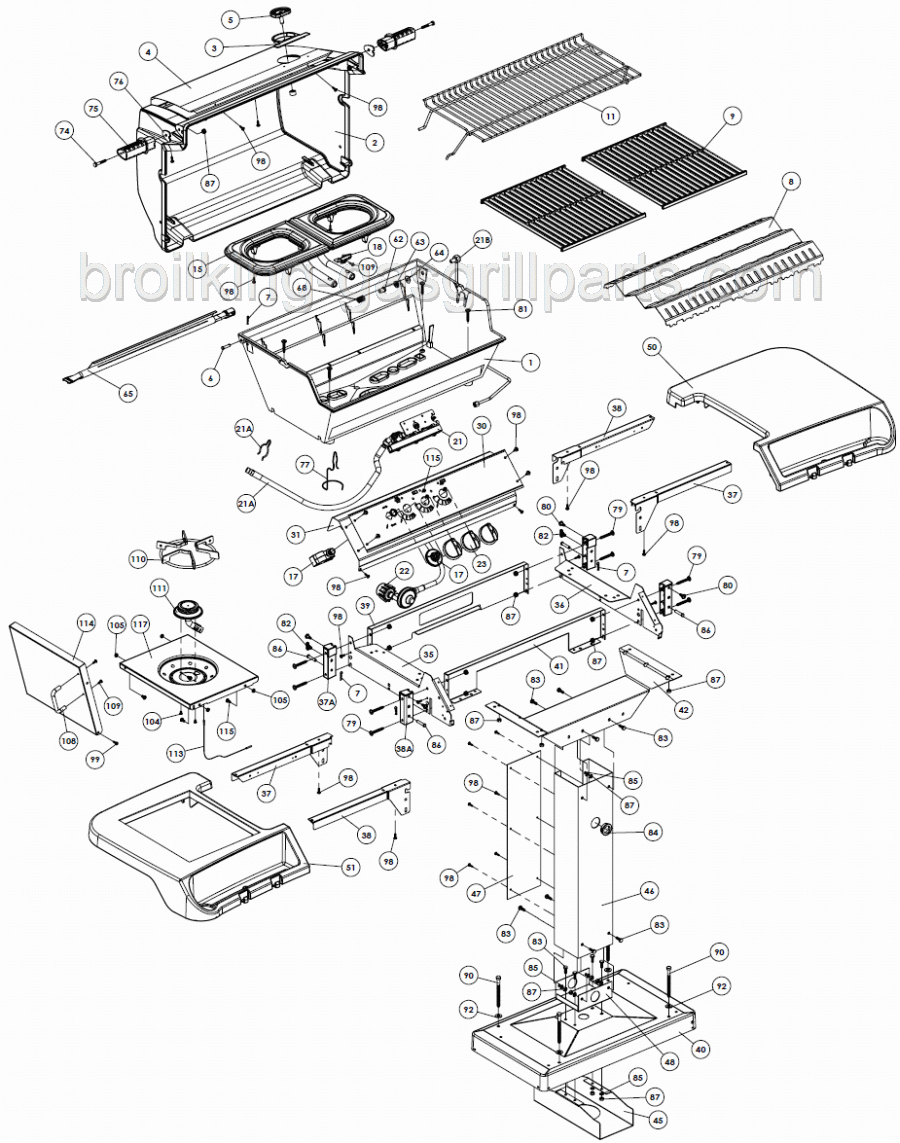

Click image or part# below for complete description and photos.
3		10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC - more info and photos...	$13.12		Qty
5		10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long. - more info and photos...	$17.77		Qty
7		S21233 Hinge pin clip. - more info and photos...	$1.08		Qty
8		10222-T425 Genuine OEM stainless steel Flav-R-Wave heat plate. Also replaces porcelain-steel part# 10222-T424, which has been dis - more info and photos...	$48.96		Qty
9		10225-T407 Genuine OEM cast iron cooking grid SOLD INDIVIDUALLY.*Sold individually*Number required varies, check your grill*Porcela - more info and photos...	$41.90		Qty
15		10390-T501 Genuine OEM stainless steel Infinity burner assembly. This burner assembly does not include the electrodes. Includes:*O - more info and photos...	$74.39		Qty
17		10342-244 Electronic push-button 1-spade igniter.*Uses AAA battery (not included)*Requires 3/4" mounting hole*Also replaces part 1 - more info and photos...	$16.96		Qty
18		10342-T301 Genuine OEM collector box and electrode assembly. Includes:*burner mounted box with mounting screw* ceramic electrode a - more info and photos...	$10.96		Qty
37		10184-E461 SHELF SUPPORT LH BLK - more info and photos...	$7.02		Qty
43		10958-K55 POST INGROUND - more info...	$32.55		Qty
47		10958-K541 Genuine OEM flat black post cover. 5/16in side-to-side, 18 7/8in tall. - more info and photos...	$9.93		Qty
74		Y-6616 Bolt - more info and photos...	$1.08		Qty
76		10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material. - more info and photos...	$1.95		Qty
77		S15111 Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket - more info and photos...	$3.11		Qty
88		10958-K58 POST BRACE INGROUND + - more info...	$1.95		Qty
