Grill model: 948-17B
Genuine Broil King factory replacement parts

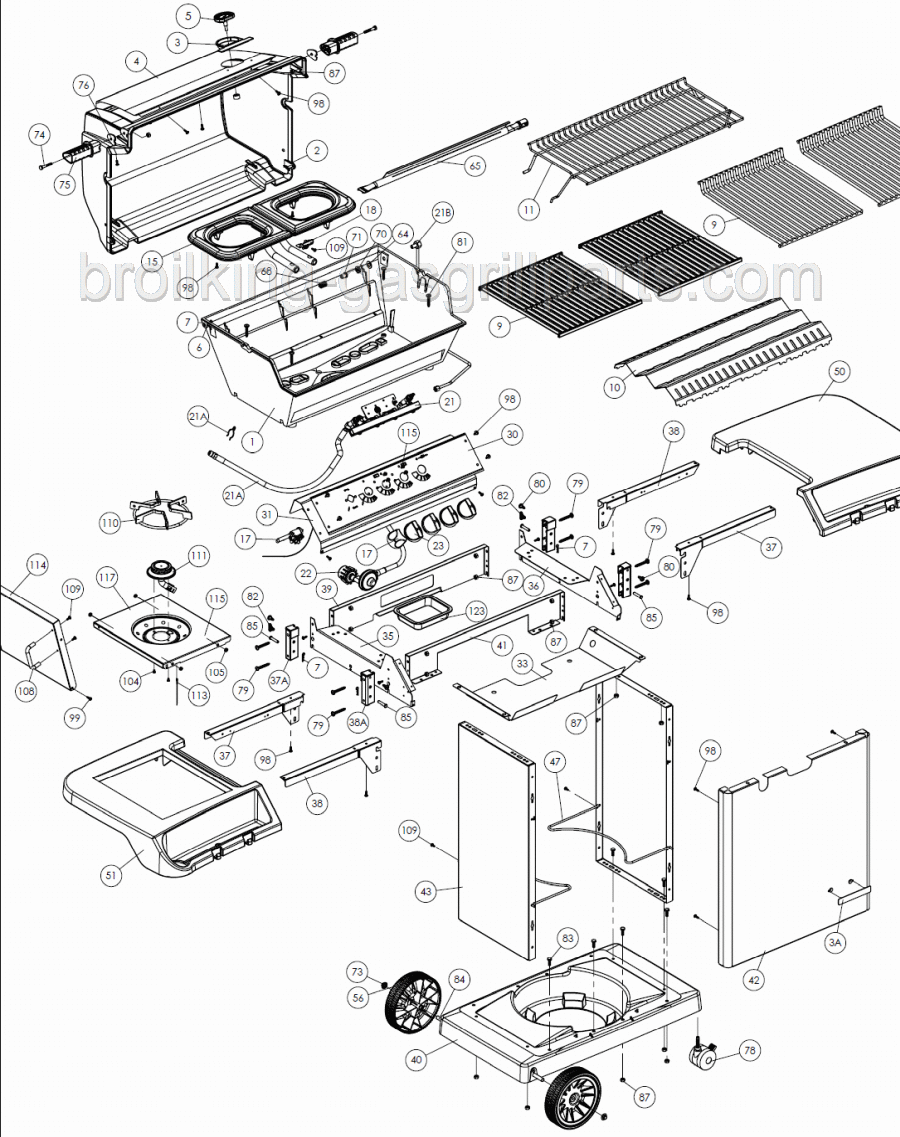

Click image or part# below for complete description and photos.
3		10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC - more info and photos...	$16.25		Qty
5		10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long. - more info and photos...	$17.76		Qty
7		S21233 Hinge pin clip. - more info and photos...	$1.08		Qty
9		10225-T407 Genuine OEM cast iron cooking grid SOLD INDIVIDUALLY.*Sold individually*Number required varies, check your grill*Porcela - more info and photos...	$55.79		Qty
10		10222-T425 Genuine OEM stainless steel Flav-R-Wave heat plate. Also replaces porcelain-steel part# 10222-T424, which has been dis - more info and photos...	$49.60		Qty
11		CLA-WS0192 Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which a - more info and photos...	$49.62		Qty
15		10390-T501 Genuine OEM stainless steel Infinity burner assembly. This burner assembly does not include the electrodes. Includes:*O - more info and photos...	$74.30		Qty
17		10342-244 Electronic push-button 1-spade igniter.*Uses AAA battery (not included)*Requires 3/4" mounting hole*Also replaces part 1 - more info and photos...	$16.95		Qty
18		10342-T301 Genuine OEM collector box and electrode assembly. Includes:*burner mounted box with mounting screw* ceramic electrode a - more info and photos...	$10.95		Qty
22		10111-K45 Genuine OEM NG gas hose. - more info and photos...	$88.64		Qty
33		10184-R80 Radiation shield. - more info and photos...	$19.68		Qty
37		10184-E461 SHELF SUPPORT LH BLK - more info and photos...	$7.02		Qty
56		10892-7G Genuine OEM 7" cart wheel with 3/8" axel hole. Mini hub cap is # 00400251, sold separately. - more info and photos...	$13.19		Qty
73		S21420 Push nut 3/8 - more info and photos...	$2.23		Qty
74		Y-6616 Bolt - more info and photos...	$1.08		Qty
76		10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material. - more info and photos...	$1.95		Qty
78		10892-13 Genuine OEM twin wheel swivel castor, approximately 2 3/8 inch. - more info and photos...	$8.32		Qty
123		S15115 Genuine OEM disposable grease pans. Package of 10. Each measures 4.75"x6"x1". - more info and photos...	$15.13		Qty
