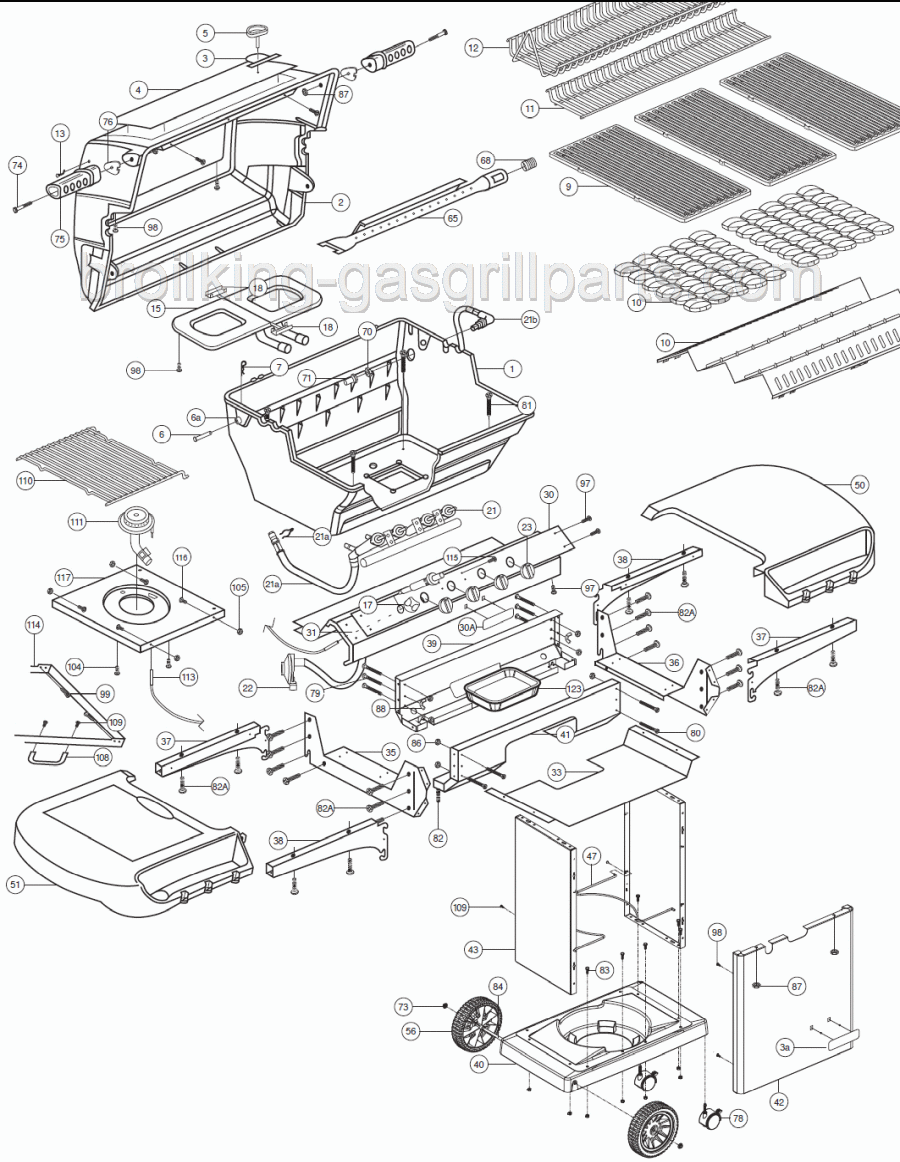

Click image or part# below
for complete description and photos. |
|
| 3 |
 |
10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC - more info and photos... |
$16.25 |
|
|
| 5 |
 |
10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long. - more info and photos... |
$17.76 |
|
|
| 7 |
 |
S21233 Hinge pin clip. - more info and photos... |
$1.08 |
|
|
| 9 |
 |
10225-T536 Genuine OEM cast iron cooking grid, SOLD INDIVIDUALLY.*Sold individually.*Number required varies.*Porcelain ename - more info and photos... |
$56.52 |
|
|
| 10 |
 |
10222-T425 Genuine OEM stainless steel Flav-R-Wave heat plate. Also replaces porcelain-steel part# 10222-T424, which has been dis - more info and photos... |
$49.60 |
|
|
| 11 |
 |
10225-T528 Genuine OEM warming rack - more info and photos... |
$45.25 |
|
|
| 15 |
 |
S10017 Genuine OEM stainless steel burner and venturi assembly. Includes burner-mounted igniter electrode and wire part# S15500 - more info and photos... |
$76.25 |
|
|
| 17 |
 |
UP-8B Universal 3 outlet rotary spark generator. Includes knob. - more info and photos... |
$21.96 |
|
|
| 17 |
 |
10472-K40 Genuine OEM rotary igniter knob. - more info and photos... |
$5.15 |
|
|
| 18 |
 |
S15500 Genuine OEM collector box and electrode assembly. Includes *burner mounted collector box (clip on)* ceramic electrode a - more info and photos... |
$5.45 |
|
|
| 21 |
|
10442-R87 CONTROL ASSEMBLY 52/10/15M -- 4V NG - more info...
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. |
$86.36 |
|
|
| 21A |
|
S13467-091 LP side burner hose no longer available separately. For safety reasons, now sold only as entire valve assembly. Please v - more info... |
|
| 21A |
|
S13467-132 NG side burner hose no longer available separately. - more info... |
$24.42 |
|
|
| 21A |
 |
Y-11230 Cotter pin - more info and photos... |
$1.08 |
|
|
| 22 |
 |
80012 24" LP hose and regulator with QCC-1 connection.*For use on "new style" QCC-1 tanks.*Consists of hose part# 01000 and r - more info and photos... |
$46.36 |
|
|
| ? |
 |
HR-4B Type 1 LP Regulator with 22" Pressure Hose and 3/8" Female Flare Fitting.FITS: Up to 60,000 BTUs - more info and photos... |
$34.71 |
|
|
| 22 |
 |
10111-K45 Genuine OEM NG gas hose. - more info and photos... |
$88.64 |
|
|
| 33 |
 |
10184-R80 Radiation shield. - more info and photos... |
$19.68 |
|
|
| 37 |
 |
10184-R581 Shelf support, left. - more info and photos... |
$10.35 |
|
|
| 38 |
 |
10184-R591 SHELF SUPPORT RH BLK(18") - more info and photos... |
$10.35 |
|
|
| 43 |
|
10958-R861 PEDESTAL SIDE PANEL 2004 BLACK -- 23 13/16 x 12.419 - more info... |
$22.60 |
|
|
| 47 |
 |
10184-R19 TANK RETAINER-PEDESTAL-NEW - more info and photos... |
$4.40 |
|
|
| 56 |
 |
10892-8NG Genuine OEM 8" cart wheel with a 3/8" axel hole. Also replaces part# 10892-8, and 10892-8N which have been discontinued - more info and photos... |
$17.01 |
|
|
| 65 |
 |
S13005A Genuine OEM stainless steel rotisserie burner assembly. Includes:*26 3/16" SS rotisserie burner with deflector (part# - more info and photos... |
$34.40 |
|
|
| 68 |
 |
S21362 REAR BURNER SPRING - more info and photos... |
$1.08 |
|
|
| 73 |
 |
S21420 Push nut 3/8 - more info and photos... |
$2.23 |
|
|
| 74 |
 |
Y-6616 Bolt - more info and photos... |
$1.08 |
|
|
| 76 |
 |
10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material. - more info and photos... |
$1.95 |
|
|
| 78 |
 |
10892-15 Genuine OEM caster wheel; approximately 2 3/8" diameter. - more info and photos... |
$7.23 |
|
|
| 104 |
|
Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 - more info... |
$0.70 |
|
|
| 108 |
 |
PB20-60 S/B LID HANDLE WAGON ENCLOSER* - more info and photos... |
$1.95 |
|
|
| 110 |
 |
10225-T10 Genuine OEM side burner grid - more info and photos... |
$25.62 |
|
|
| 111 |
 |
10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow). - more info and photos... |
$14.96 |
|
|
| 113 |
 |
10342-T14 Genuine OEM 21" wire for side burner or other applications. One female spade connector, one female round connector. - more info and photos... |
$4.32 |
|
|
| 114 |
 |
10393-K40 Genuine OEM Cover, side burner. - more info and photos... |
$18.73 |
|
|
| 123 |
 |
S15115 Genuine OEM disposable grease pans. Package of 10. Each measures 4.75"x6"x1". - more info and photos... |
$15.13 |
|
|
|
 |
66123-UNI-X3 Premium universal cooking grids. Set of three (3) grids. Porcelain treated cast iron. Matte finish. - more info and photos... |
$113.25 |
|
|
|
 |
66123-UNI Premium universal cooking grid. Porcelain treated cast iron. Matte finish. Sold individually. See part - more info and photos... |
$43.61 |
|
|
|
 |
66124-1PC Cast iron cooking grid. Porcelain treated, matte finish. Sold individually, number required varies. - more info and photos... |
$37.52 |
|
|
|
 |
CG-74P-CI Cast iron cooking grid. Porcelain treated, matte finish. FIts Kenmore And Other Import Grills. Sold individually, num - more info and photos... |
$43.61 |
|
|
|
 |
66123 Cast iron cooking grids (set of 3). Porcelain treated, matte finish. - more info and photos... |
$105.26 |
|
|
| ? |
 |
CG-74P-CI-X3 Cast iron cooking grids. SET OF THREE (3) panels.*Porcelain treated, matte finish*Each panel measures 16 7/8" x 8 1/4"* - more info and photos... |
$113.25 |
|
