Grill model: 543-37
Genuine Broil King factory replacement parts

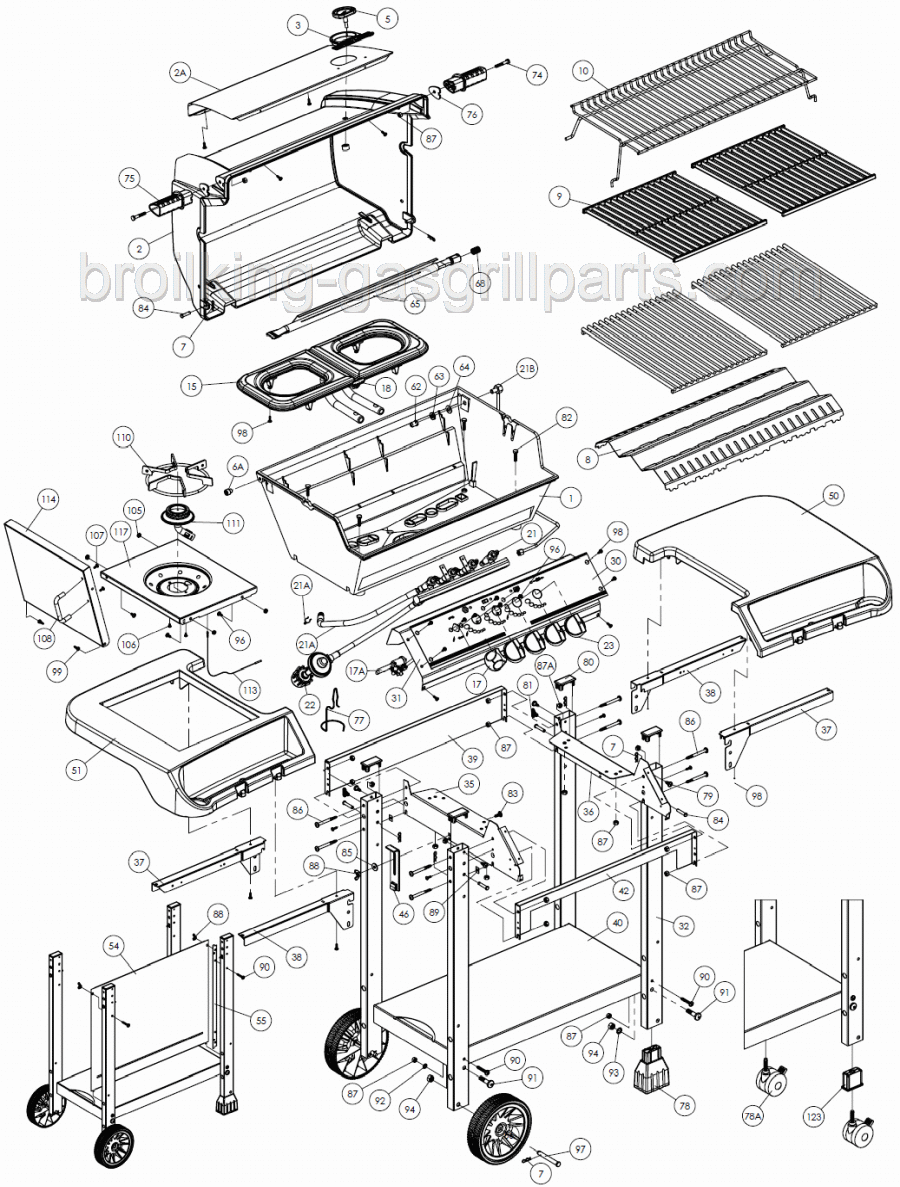

Click image or part# below for complete description and photos.
3		10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC - more info and photos...	$16.25		Qty
5		10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long. - more info and photos...	$17.76		Qty
7		S21233 Hinge pin clip. - more info and photos...	$1.08		Qty
8		10222-T325 Genuine OEM stainless steel Flav-R-Wave SS heat plate. - more info and photos...	$37.41		Qty
9		10225-T341 Genuine OEM cooking grid SOLD INDIVIDUALLY.*Sold individually*Number required varies, check your grill*Porcelain enamel - more info and photos...	$21.20		Qty
15		10390-T401 Genuine OEM stainless steel burner and venturi assembly. - more info and photos...	$67.70		Qty
17		10472-K40 Genuine OEM rotary igniter knob. - more info and photos...	$5.15		Qty
17A		10342-249 Rotary igniter for two outlets uses round connector wires. INCLUDES KNOB, NOT SHOWN IN PHOTO. Also replaces part# 1034 - more info and photos...	$18.30		Qty
18		10342-T301 Genuine OEM collector box and electrode assembly. Includes:*burner mounted box with mounting screw* ceramic electrode a - more info and photos...	$10.95		Qty
21		10442-E39 CONTROL ASSEMBLY 44 10M 3V NG -- T35 - more info... SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer.	$74.03		Qty
21A		S13467-132 NG side burner hose no longer available separately. - more info...	$24.42		Qty
21A		Y-11230 Cotter pin - more info and photos...	$1.08		Qty
22		10111-K45 Genuine OEM NG gas hose. - more info and photos...	$88.64		Qty
38		10184-E461 SHELF SUPPORT LH BLK - more info and photos...	$7.02		Qty
51		10711-E563 SHELF SB EZ-BILT W/O BRACKET - more info...	$35.98		Qty
56		10892-7G Genuine OEM 7" cart wheel with 3/8" axel hole. Mini hub cap is # 00400251, sold separately. - more info and photos...	$13.19		Qty
74		Y-6616 Bolt - more info and photos...	$1.08		Qty
76		10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material. - more info and photos...	$1.95		Qty
77		S15111 Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket - more info and photos...	$3.11		Qty
78A		10892-13 Genuine OEM twin wheel swivel castor, approximately 2 3/8 inch. - more info and photos...	$8.32		Qty
106		Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 - more info...	$0.70		Qty
108		PB20-60 S/B LID HANDLE WAGON ENCLOSER* - more info and photos...	$1.95		Qty
111		10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow). - more info and photos...	$14.96		Qty
113		10342-T14 Genuine OEM 21" wire for side burner or other applications. One female spade connector, one female round connector. - more info and photos...	$4.32		Qty
123		10184-E60 Plug castor 1 x 2 inch. - more info and photos...	$2.83		Qty
